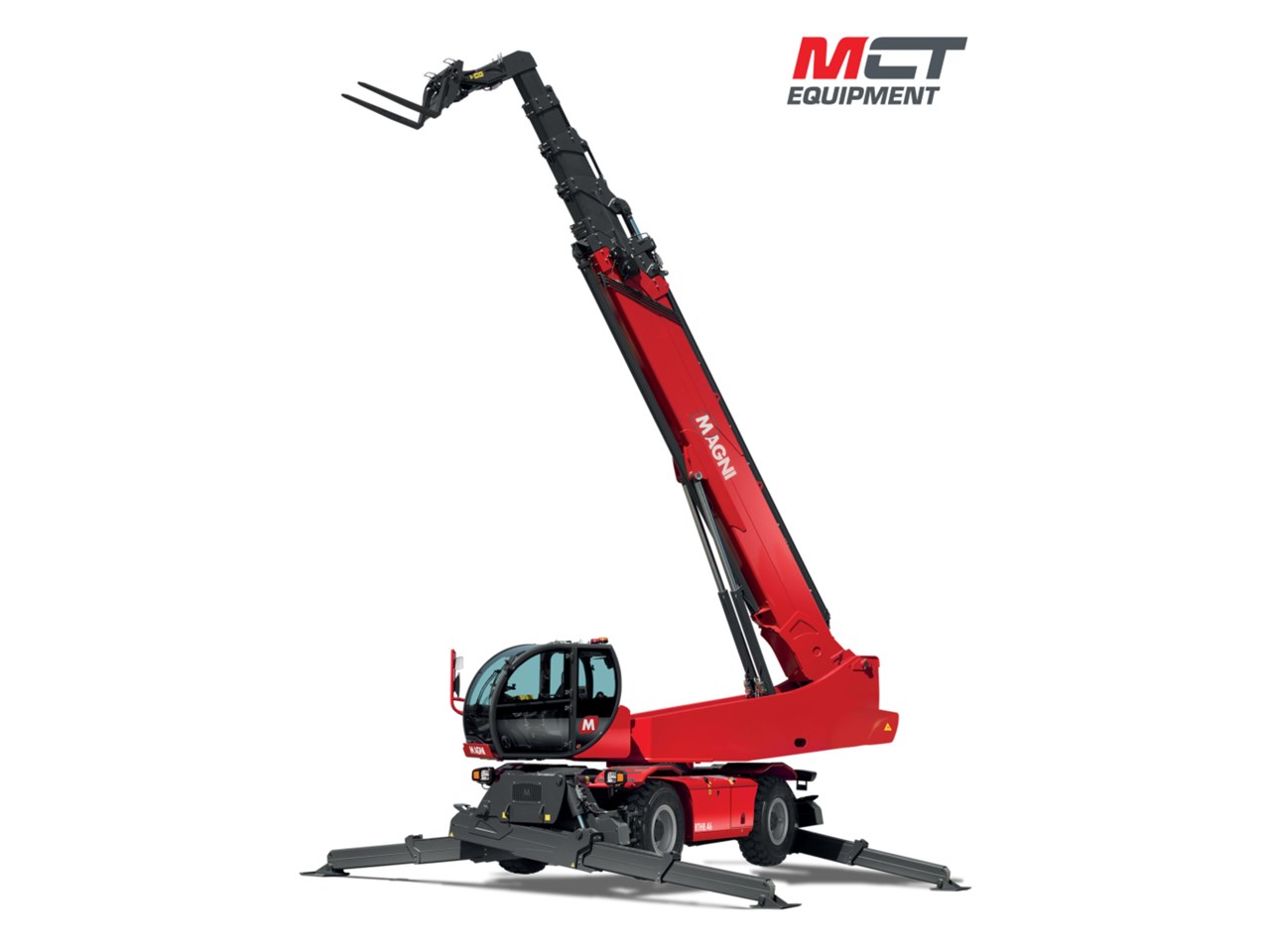

2025 MAGNI RTH 8.46

The RTH 8.46 has a lifting capacity up to 8 tonnes. Inheriting the two extension modes, M1 and M2, the 8.46 establishes itself at the top of its class, as one of the rotating telescopic handlers with the highest lifting heights, second only to the RTH 6.51, the record-holder for this type of machine.

The 8.46 offers unique performance, better in terms of heights, maximum reach with 1 m more, and load capacity, lifting 8 tonnes up to 22 m , to carry 1 tonne to a horizontal reach of 31 m and to carry 500 kg to the maximum reach of 33 m.

The 8.46 is the ideal partner on even the toughest construction sites, with the agility and ease of use to guarantee operators a unique experience. No challenge is too complex: safety and precision are assured at even the greatest heights.

Specifications:
o Stabilizers: scissors
o Lifting capacity: 8,000 kg
o Capacity at maximum height: 2,500 kg
o Lifting height: 45.90 m
o Reach: 33 m
o Engine: Volvo TAD 552 VE - Stage IIIA
o Rated power: 175 kW (238 hp) 2.300 rpm
o Hydraulic flow: 205 l/min
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 9.22 m
o Width: 2.49 m
o Ground clearance: 310 mm
o Unladen weight: 35,300 kg
o Travel speed: 25 km/h
o Rotation: 360° (continue)
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
o Reversible fan drive: Yes
