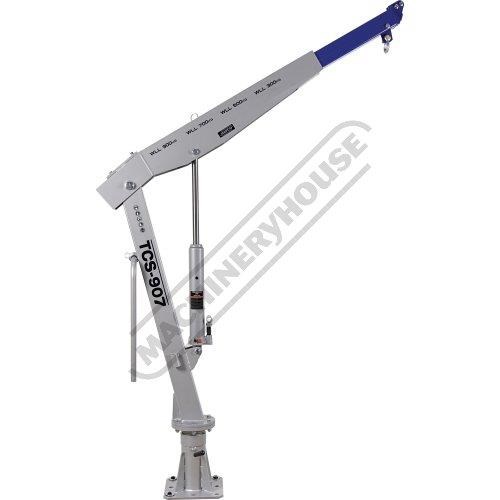

HAFCO TCS-907

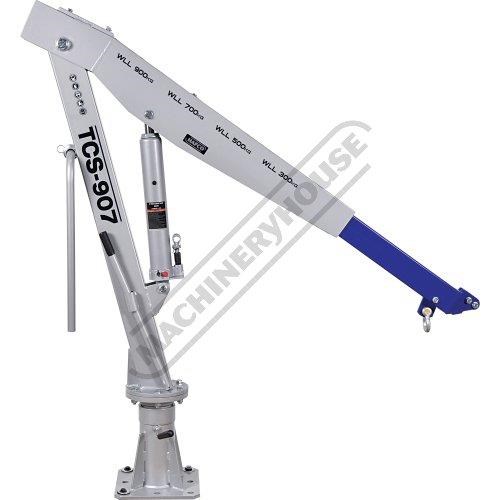

TCS-907 Swivel Crane - Truck or Ute 900kg Lifting Capacity 360?? working angle

HAFCO TCS-907 Swivel Crane - Truck or Ute 900kg Lifting Capacity 360?? working angle
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: A354

Use it in your workshop or the back of your ute / truck. The base includes a tapered roller bearing for 360-degree swivel & the bow shackle lifting point to securely attach slings or chains.

Features:

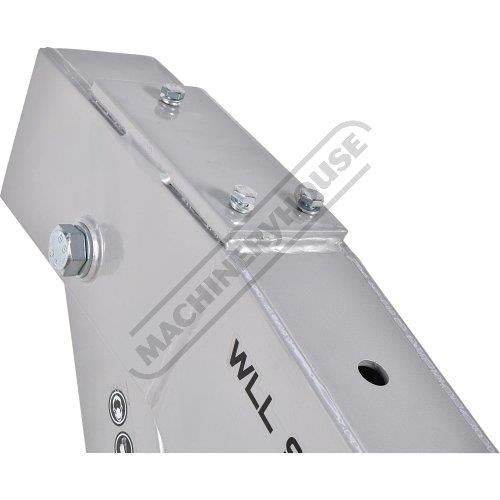

Heavy duty steel construction with robot welded components

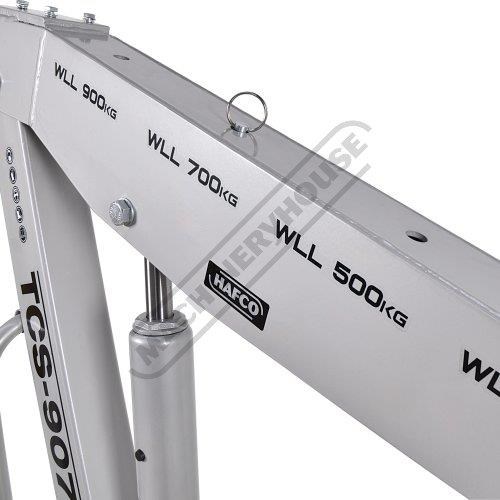

4 Lifting positions - 900kg 700kg 500kg & 300kg

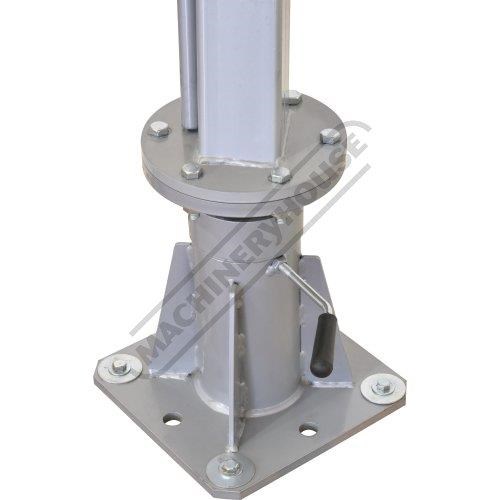

360?? swiveling base with taper roller bearing

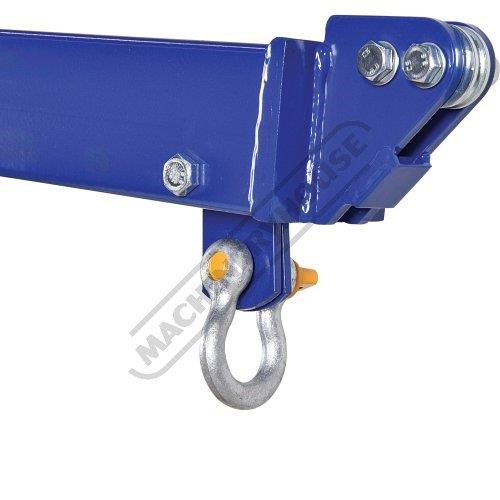

Supplied with a load rated bow shackle

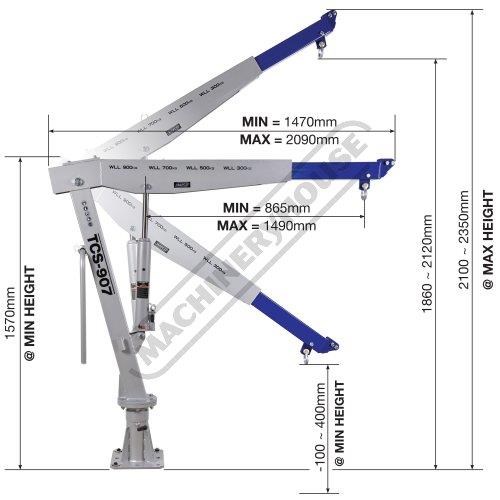

Max. Lift Height at 900kg Position = 1880mm
Max. Lift Height at 300kg Position = 2150mm


Specifications:
Order Code: A354
MODEL: TCS-907

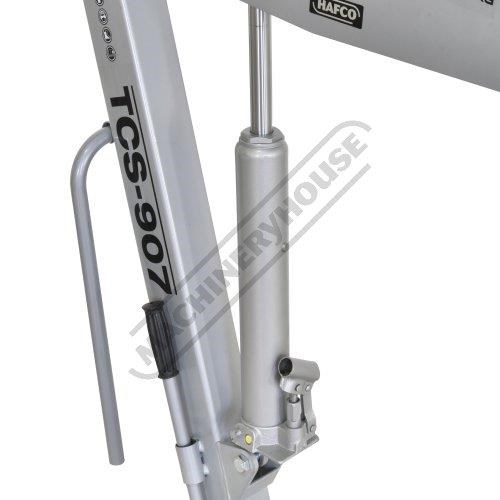

Hydraulic Ram (Tonne): 3
Power Supply (V): ~
Single Line Lifting Capacity (kg): 900
Double Line Lifting Capacity (kg): ~

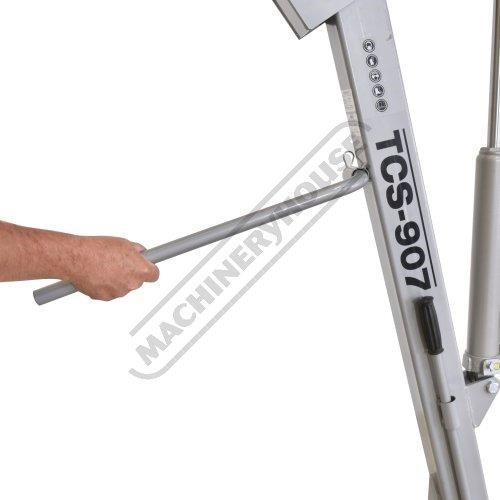

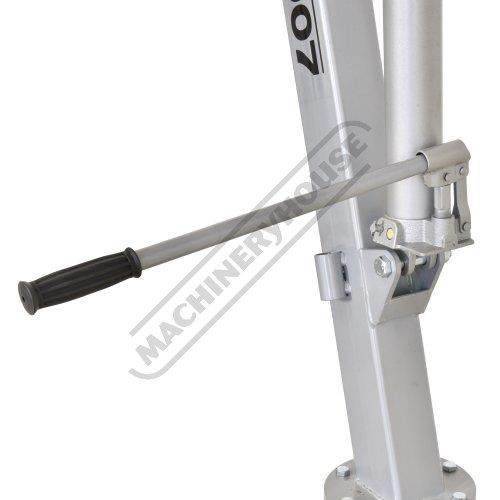

Lifting System (Type): Hydraulic - Manual
Lift Capacity Pin Locations (Kg): 900, 700, 500 & 300
Steel Box Section Size - Vertical Support (mm): 100 x 80
Steel Box Section Size - Extension Arm Support (mm): 90 x 90
Max. Lift Height (Base to Lifting Shackle) (mm): ~
Min. Lift Height (Base to Lifting Shackle) (mm): ~
Overall Height - Boom at Lowest Position (mm): 1600
Nett Weight (kg): 88


To Purchase Online Please Visit The Machineryhouse Website & Search For 'A354'
