FERRUM DSZ-U R 1250

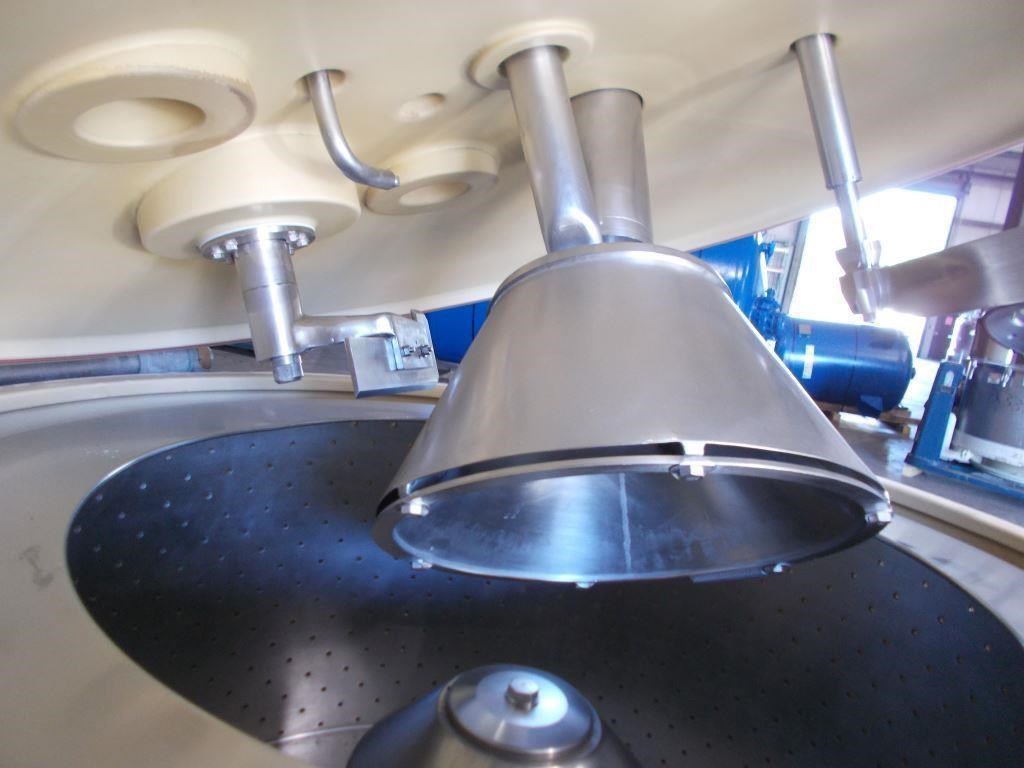

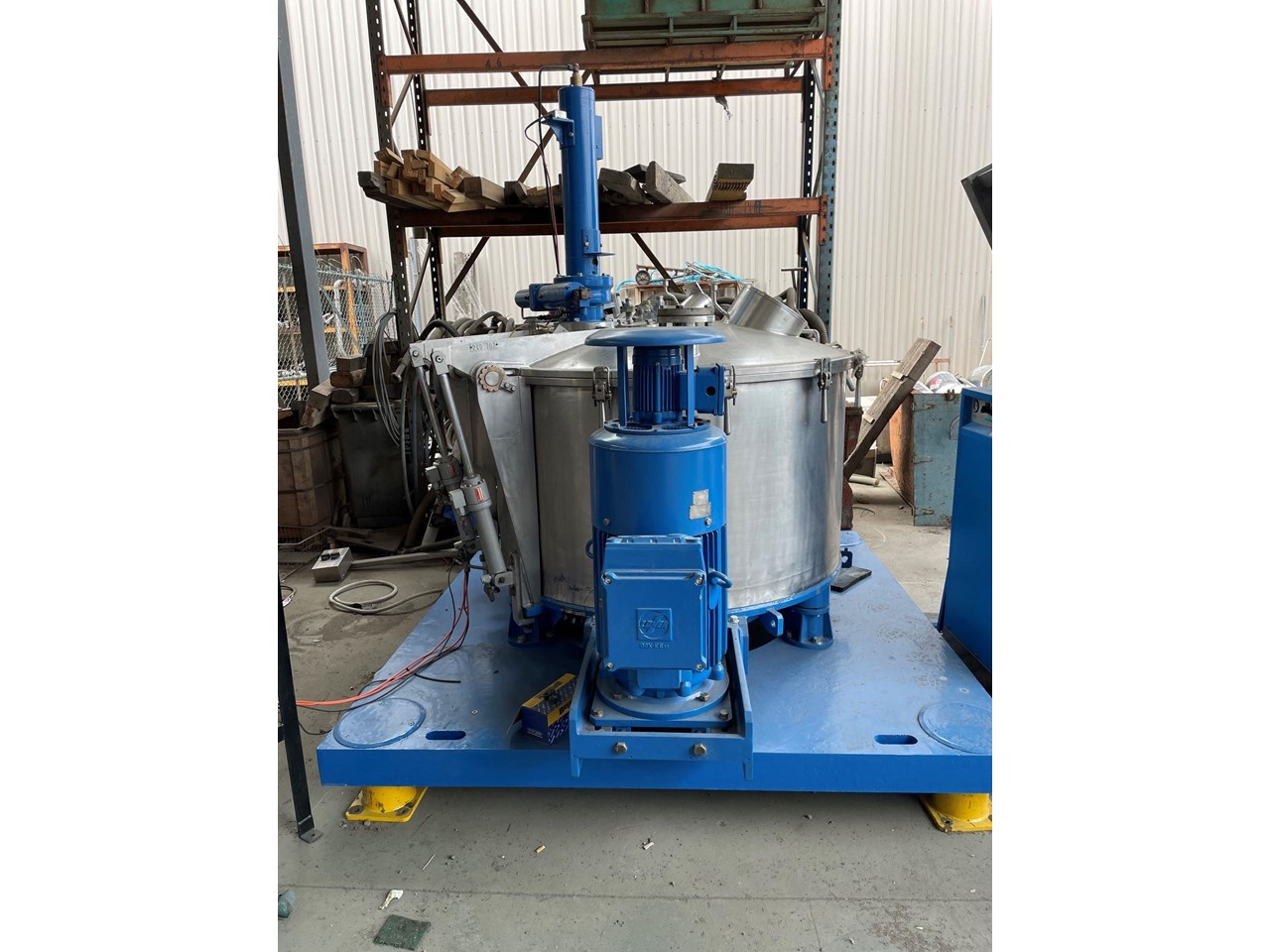

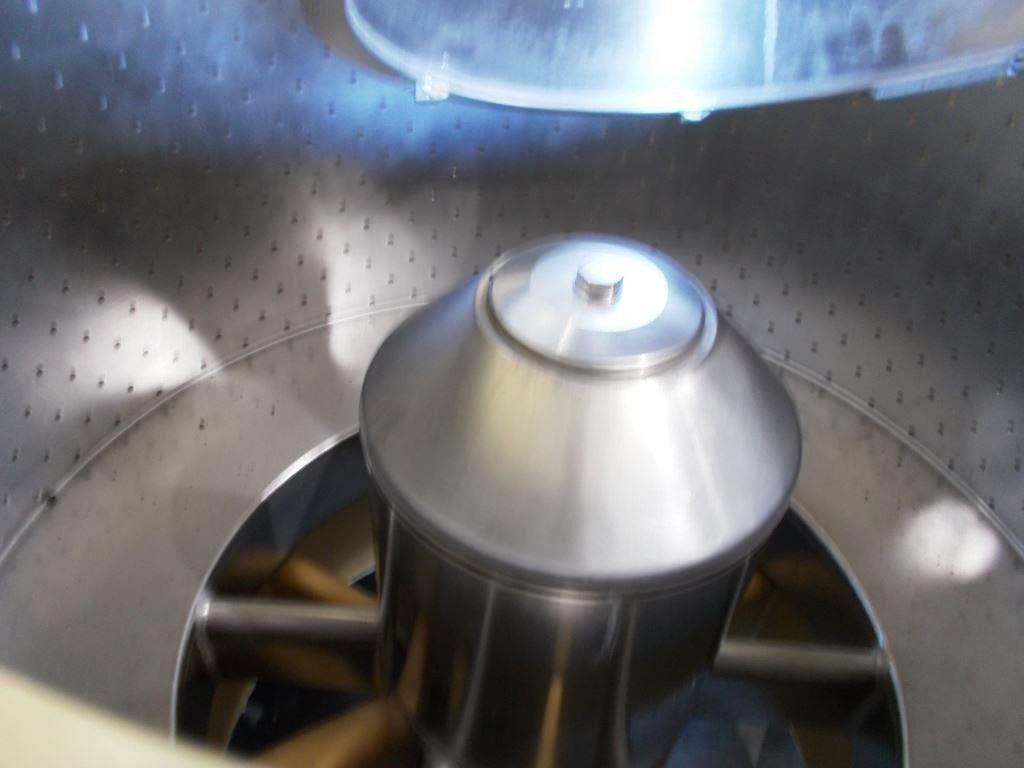

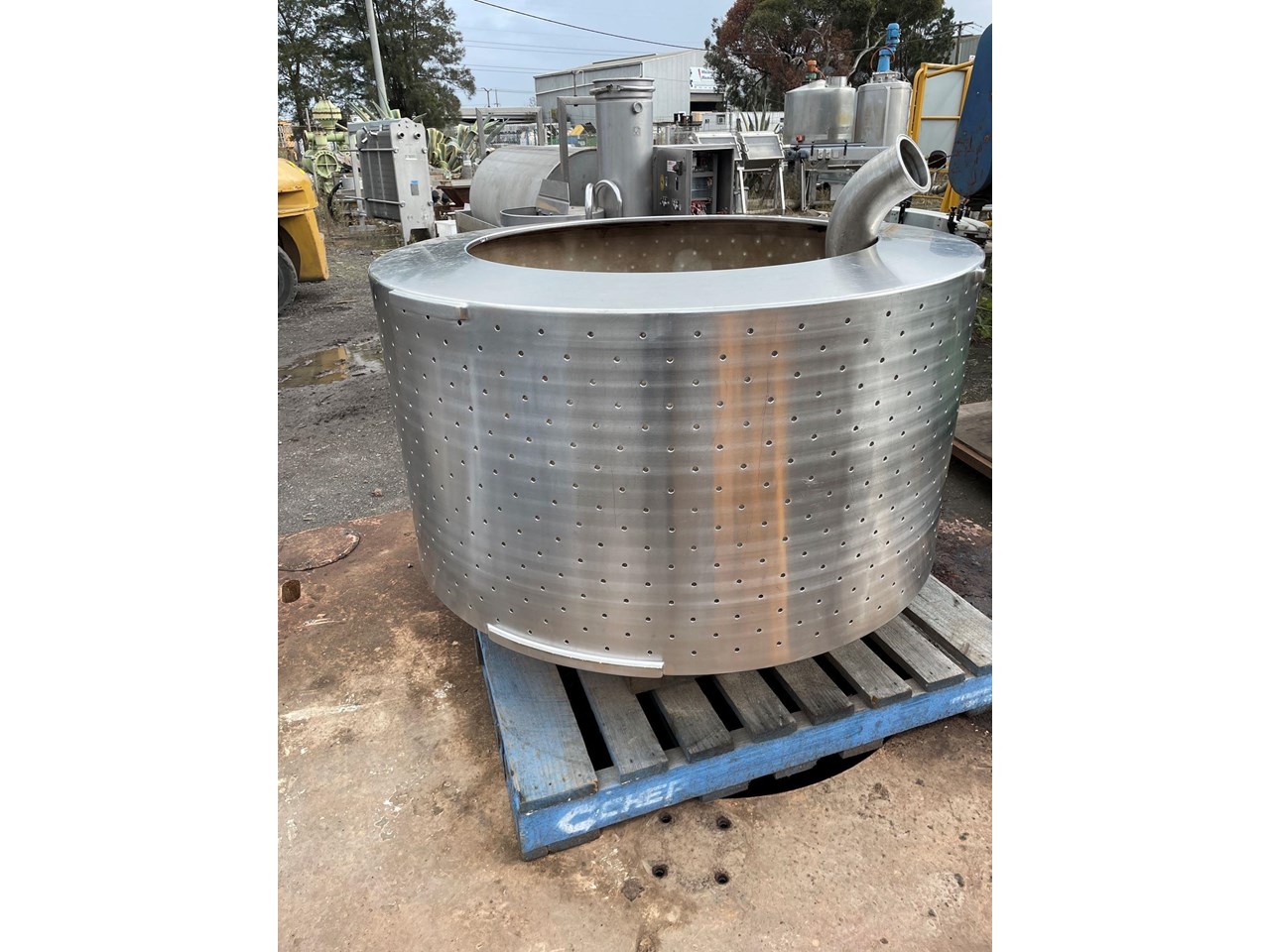

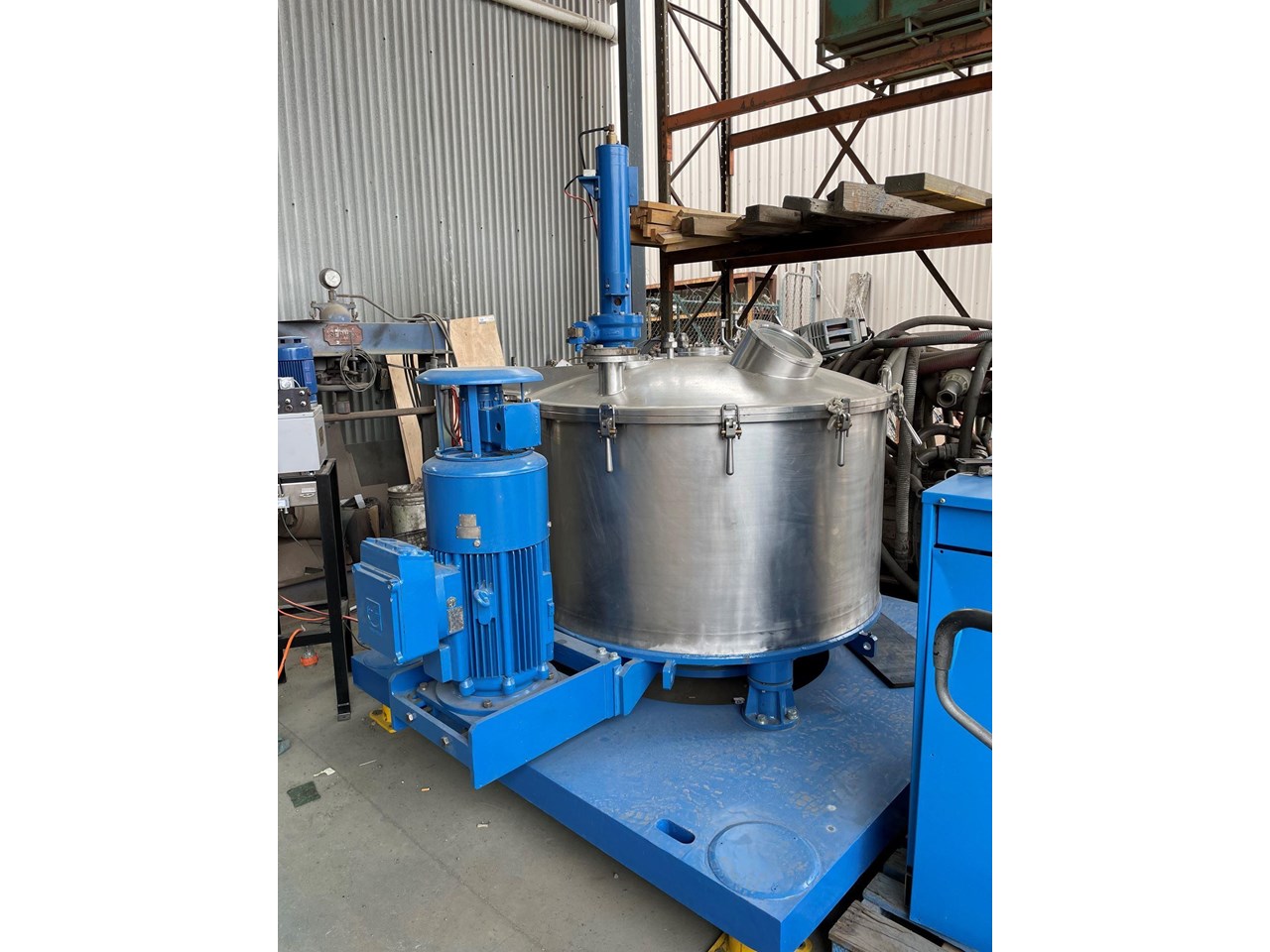

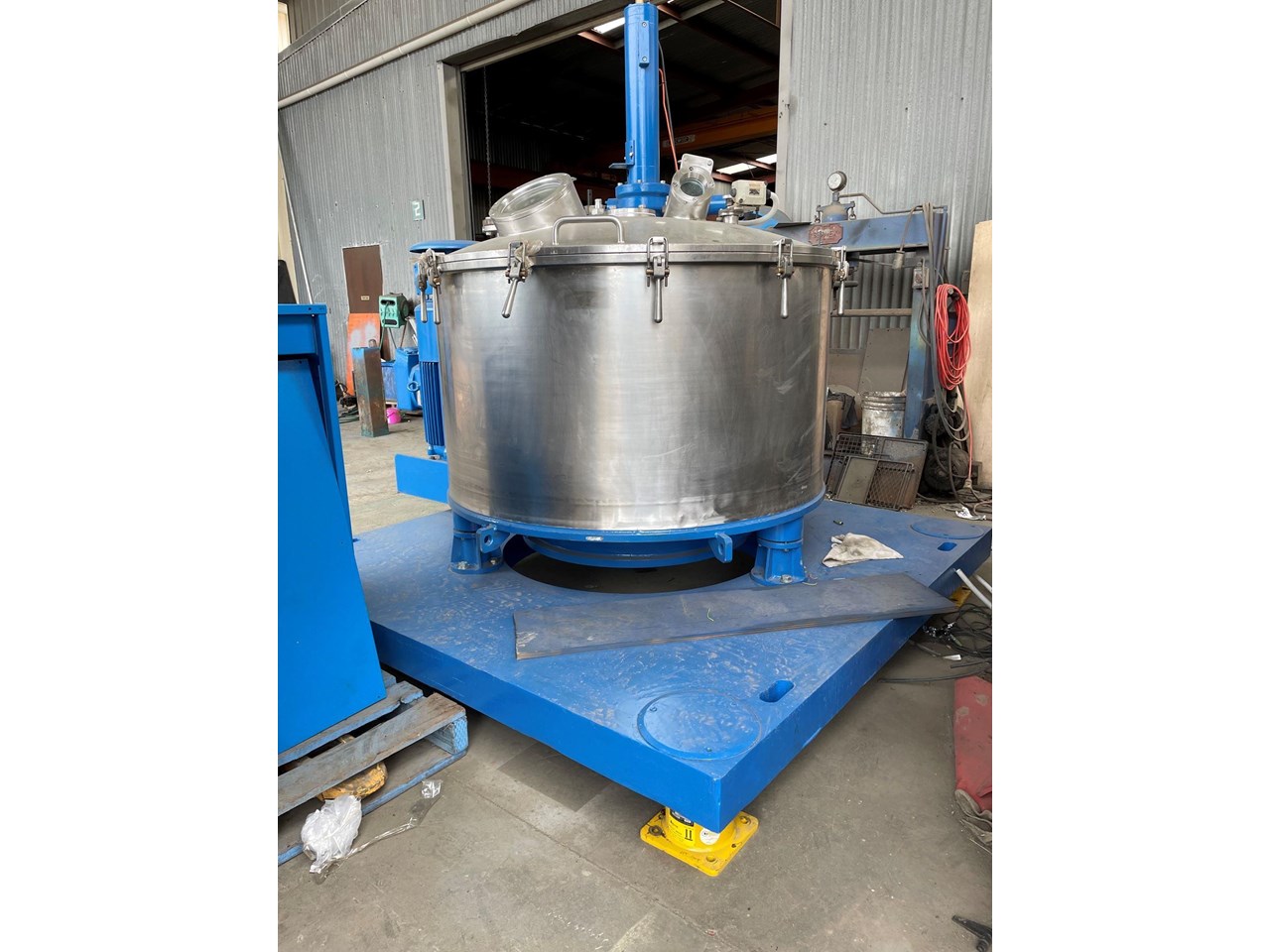

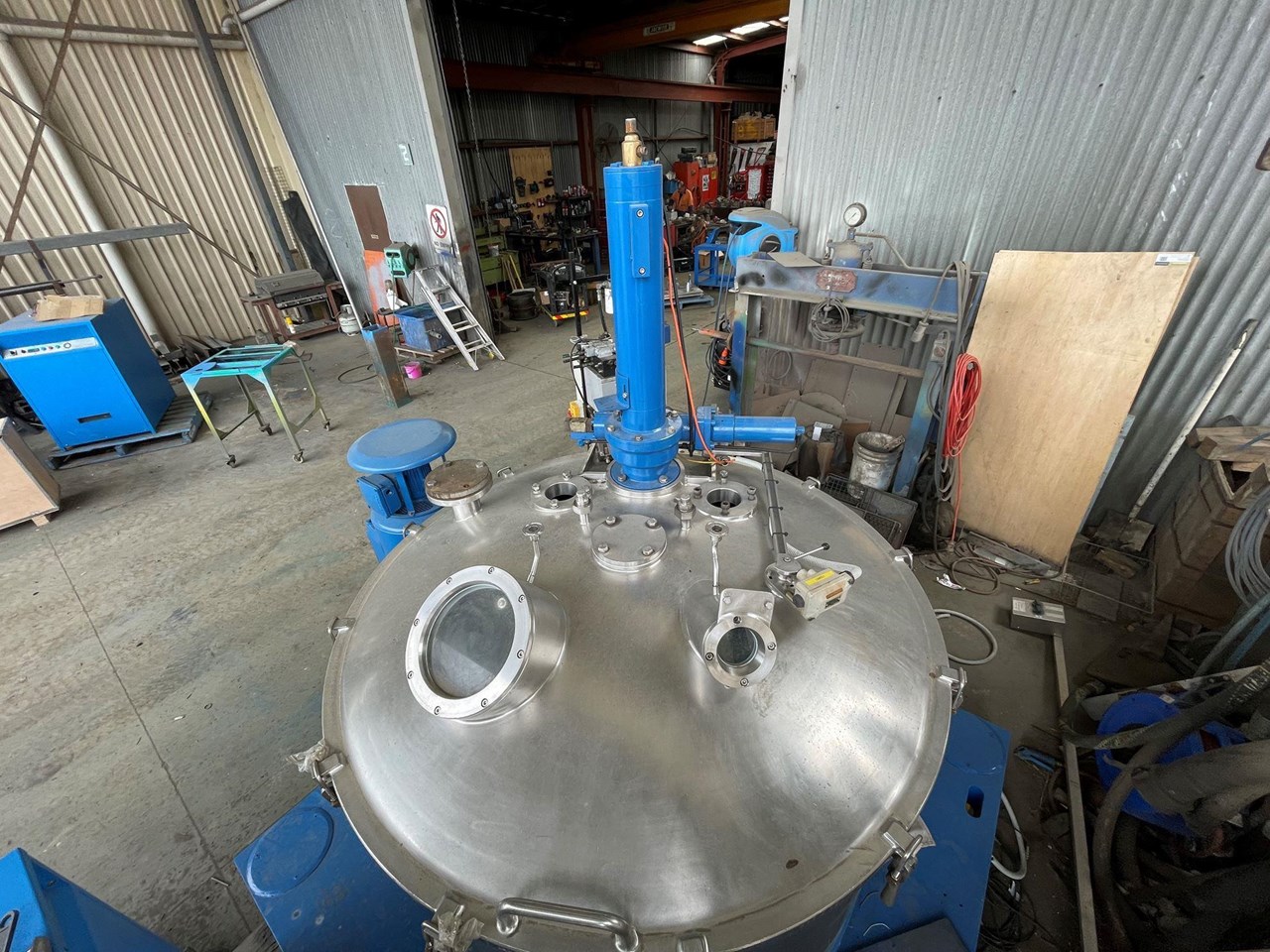

The vertical basket centrifuges of the type DZF Pull Action Filter centrifuges are designed for different applications in solid-liquid separation. The discharge system is a Ferrum innovation (patented) and functions without using a scraper knife. Vertical Ferrum DSZ Basket centrifuge with a max bowl speed of 950 RPM bottom discharge gastight 2.47 m2 filtration area 500 kg max loadbuilt in a sanitary design. 22 KW motor 460/3/60/1750 RPM pneumatic heel cake removal feature hydraulic power pack for lid lifting. Prior use: Pharmaceutical. Excellent condition. Features * Discharging without scraper knife * Gentle product treatment - no crystal breakage * No residual heel since this is also removed by stretching the filter cloth * The filter cloth is only stretched for discharging not inverted. Therefore the mechanical strain of the filter cloth is comparatively small. * The discharge sequence is carried out within the basket. For this reason the centrifuge housing remains free from centrifuged product. * The dimensions and the weight of the Pull Action Filter centrifuge are significantly smaller than for a comparable horizontal filter centrifuge. * The Pull Action Filter centrifuge is less expensive than a comparable horizontal centrifuge with inverting filter cloth mechanism. * Suitable for potentially explosive areas according to directive 2014/34/EU (ATEX)
